Meet the PAM Range

The PAM product family provides quick and simple operation.

With the growing adoption of IP infrastructures, customers can monitor ST-2110, ST-2022-6 and Dante AoIP, alongside SDI, AES and Analogue sources, all from a single unit, the PAM-IP. For customers working with traditional infrastructures, the PAM-MK2 audio monitors provide the same interface and operational experience as the PAM-IP, including comprehensive loudness monitoring and Dolby Decoding capability.

Features

Features

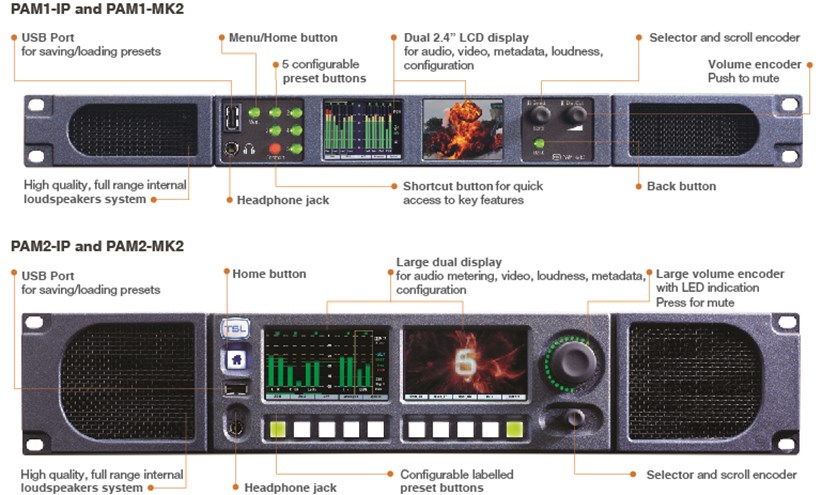

  • Our flagship Precision Audio Monitor (PAM) range supports stereo, multichannel, multi-language and surround sound environments via a sophisticated, intuitive control interface.
  • The PAM-IP also features Primary and Secondary Dante ports,SDI, AES and Analogue connections for use with traditional infrastructures.
  • Now supports IP Infrastructures whilst maintaining 3G/HD/SD-SDI, AES and Analogue Audio connections.
  • Multichannel audio outputs for external stereo or 5.1 loudspeaker system integration.



PAM Customers


TImeline Television
  • Timeline TV have been using TSL products for a number of years and invested in another PAM2-MK2 for new RF Truck.
Read more

BCE LUXEMBOURG
  • BCE chose the PAM-IP for use in their ground-breaking all IP facility at RTL City in Luxembourg.
Read more

CHINA CENTRAL TELEVISION NETWORK
  • China Central Television Network selected PAM2-IP for 2018 Winter Games
Read more

PAM IP API

The PAM1-IP and PAM2-IP help make the transition to IP seamless, providing peace of mind and ease of use in even the most demanding environments.

Featuring 2 SFP cages, both the PAM1-IP and PAM2-IP provide redundant connectivity to ST-2022-6 / ST-2110 IP networks, in addition  to SDI, AES and Analogue inputs.

Tight integration with your control system is made possible through In-Band control (using Ember+ and NMOS) as well as ‘Out of Band’ control with the TSL Audio RESTful API.

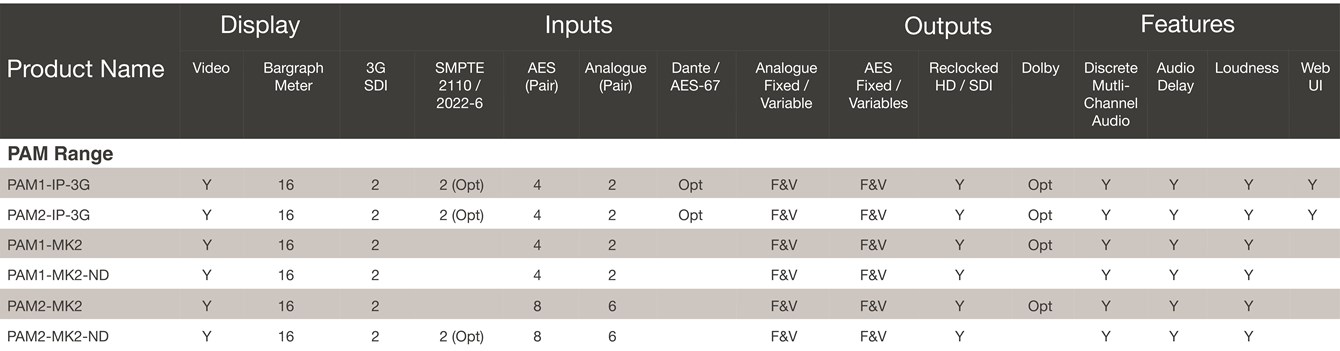

ORDER CODES

PAM SERIES


PAM1-MK2
  • Precision Audio monitoring unit, 1RU, 2 x LCD displays for 16 channel simultaneous audio monitoring, metadata, setup menus, video confidence monitor. 2 x HD/SDI (1080p 60, 59.94 & 50Hz), Dolby D/E/DD+ decoding, EBU-R128, CALM compliant loudness measurement. 2 x stereo analogue, 4 x AES inputs, Internal loudspeaker system, external PSU, External Monitor SDI output.
VIEW PRODUCT

PAM1-MK2-ND
  • Precision Audio monitoring unit, 1RU, 2 x LCD displays for 16 channel simultaneous audio monitoring, metadata, setup menus, video confidence monitor. 2 x HD/SDI (1080p 60, 59.94 & 50Hz), EBU-R128, CALM compliant loudness measurement. 2 x stereo analogue, 4 x AES inputs, Internal loudspeaker system, external PSU, External Monitor SDI output.
VIEW PRODUCT

PAM2-3G16-3
  • Precision Audio monitoring unit, 2RU, 2 x TFT LCD displays for 16 channel simultaneous audio monitoring, metadata, setup menus, video confidence monitor. 2 x HD/SDI (1080p 60, 59.94 & 50Hz), Dolby D/E/DD+ decoding, EBU-R128, CALM compliant loudness measurement. 6 x stereo analogue, 8 x AES inputs, Internal loudspeaker system, external PSU, External Monitor SDI output, Availability ex-stock
VIEW PRODUCT

PAM2-3G16-3ND
  • Precision Audio monitoring unit, 2RU, 2 x TFT LCD displays for 16 channel simultaneous audio monitoring, metadata, setup menus, video confidence monitor. 2 x HD/SDI (1080p 60, 59.94 & 50Hz), EBU-R128, CALM compliant loudness measurement. 6 x stereo analogue, 8 x AES inputs, Internal loudspeaker system, external PSU, External Monitor SDI output, Availability ex-stock
VIEW PRODUCT


PAM-IP SERIES

All PAM1-IP-3G and PAM2-IP-3G Precision Audio Monitors come equipped with 2 x Front Panel LCD Displays, providing 16 Channel Audio Monitoring with simultaneous Video Confidence Monitoring. The following functionality and connectivity is included as standard on both products: 2 x 3G/HD/SD-SDI Inputs, 4 x AES Inputs, 2 x Stereo Analogue Inputs, 2 x External SDI Monitoring Outputs, EBU-R128 Loudness Monitoring with Histogram Display,  Audio and Video Metadata Monitoring,  5.1 Monitoring Output,  Remote Control and Configuration via Web-Browser   Support for PAM and 3rd Party Control Protocols,  1 x  External P.S.U. (optional redundant power supply also available). DOLBY, DANTE, ST-2022-6 and ST-2110 Monitoring Options are all available (see below).


PAM1-IP-3G-ND
  • PAM1-IP-3G 1RU Precision Audio Monitor.
VIEW PRODUCT

PAM1-IP-3G
  • PAM1-IP-3G 1RU Precision Audio Monitor. Complete with DOLBY E, DOLBY D and DOLBY DD+ Monitoring.
VIEW PRODUCT

PAM1-IP-3G-ND-DNT
  • PAM1-IP-3G 1RU Precision Audio Monitor. Complete with DANTE/AES67 Audio Monitoring.
VIEW PRODUCT

PAM1-IP-3G-DNT
  • PAM1-IP-3G 1RU Precision Audio Monitor complete with DOLBY E, DOLBY D and DOLBY DD+ Monitoring and DANTE/AES67 Audio Monitoring.
VIEW PRODUCT

PAM2-IP-3G-ND
  • PAM2-IP-3G 2RU Precision Audio Monitor.
VIEW PRODUCT

PAM2-IP-3G
  • PAM2-IP-3G 2RU Precision Audio Monitor complete with DOLBY E, DOLBY D and DOLBY DD+ Monitoring.
VIEW PRODUCT

PAM2-IP-3G-ND-DNT
  • PAM2-IP-3G 2RU Precision Audio Monitor complete with DANTE/AES67 Audio Monitoring Included.
VIEW PRODUCT

PAM2-IP-3G-DNT
  • PAM2-IP-3G 2RU Precision Audio Monitor complete with DOLBY E, DOLBY D and DOLBY DD+ Monitoring and DANTE Audio Monitoring.
VIEW PRODUCT

PAM1-IP AND PAM2-IP OPTIONS


PAM-IP-HBR6-10G-OPTION
  • Single ST-2022-6 SFP Module for use with PAM1-IP-3G and PAM2-IP-3G Precision Monitoring Units. Field upgradeable. (A maximum of two ST-2022-6 Modules may be added to the PAM1-IP-3G and PAM2-IP-3G). Multi-mode fiber connection required.

PAM-IP-2110-10G-OPTION
  • Single ST-2110 SFP Module for use with PAM1-IP-3G and PAM2-IP-3G Precision Monitoring Units, complete with Ember + and NMOS support. Field upgradeable. (A maximum of two ST-2110 Modules may be added to the PAM1-IP-3G and PAM2-IP-3G). Multi-mode fiber connection required.

PAM-IP-DANTE-OPTION
  • Dante Audio Option, compatible with PAM2-IP-3G and PAM1-IP-3G.. Field upgrade.

PAM2-IP-DOLBY-OPTION
  • Dolby Decoding option, compatible with PAM2-IP and PAM1-IP. Field upgrade.


PAM PICO


PICO-5
  • Master 5.1 Surround Meter, 3G HD-SDI (auto-sensing with loop through) 16 channel audio de-embedder (simultaneous display of any 12 channels), 3 x AES Inputs (6 audio channels) + 1 x Analogue Pair and USB power (PSU and universal mounting bracket supplied). Featuring Landscape mode, FFT spectrum analyser and Screen Grabber and Loudness Logging. Availability ex-stock. Now with free Matrix Software download.
VIEW PRODUCT

PAMPICO-B1
  • Optional desk mounting bracket with aperture for kensington lock.

PICO-T-M-S/W
  • Upgrade SW for Touch Media - requires Touch Plus hardware - enables WFM analysis.
