Audio Monitoring

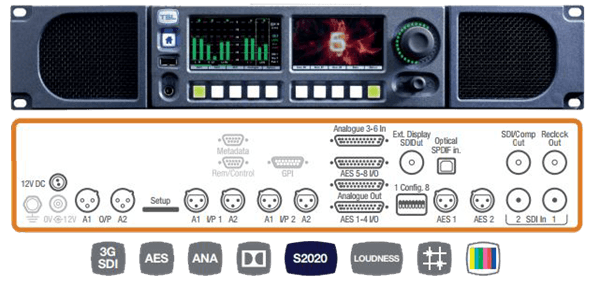

PAM2 MK2 Non Dolby

PAM2 MK2 Non Dolby NEW Precision Audio monitoring unit, the natural evolution of the revolutionary PAM2-3G16 Non-Dolby with external SDI monitor output and many other enhancements.

  • AES-icon
  • Analogue-icon
  • Auto-Sensing-HD-SDI-icon
  • Down-Conversion-icon
  • Video-Display-icon
  • HD-1080p-icon
  • Active-Speaker-System-icon
  • Audio-Delay-icon
  • Assign-Matrix-icon
  • Loudness-icon
  • Alarms-icon
  • Ethernet-icon
  • Logging-icon

PAM2 MK2 Non Dolby Features

Display: Dual OLED, Video Monitoring, 16 x Meter Type Bargraph, Data, Metadata and Loudness

Inputs: 2 x HD/SDI, 8 x AES, 6 x Analogue (Pair)

Outputs: Line Level (fixed/variable) , AES (fixed/variable), Reclocked HD/SDI, Composite Video, Downconverted Video, Headphone, Integral Loudspeakers

Features: User Configurable, Discrete Multichannel Audio Downmix, Loudness, Assign Matrix, Audio Delay, Ethernet, Logging (Future), Alarm Reporting (Future), 3G capable

View Product X

PAM PiCo Touch

PAM PiCo Touch The PAM PiCo Touch is a 7″ multi-touch Audio, Loudness and Logging Meter. With Master 5.1 and 7.1 Surround Meter, 16 channel bargraph display, 3G HD-SDI (auto-sensing with loop through), 16 channel audio de-embedder, 4 AES Inputs (8 audio channels) + 1 Analogue Pair and USB power (PSU…

  • AES-icon
  • Analogue-icon
  • Auto-Sensing-HD-SDI-icon
  • HD-1080p-icon
  • Assign-Matrix-icon
  • Loudness-icon
  • Logging-icon
  • Video-Display-icon
  • Touchscreen-icon

PAM PiCo Touch Features

Display: 16 Multi-Touch 7″ Display

Inputs: HD-SDI embedded, AES and Analog + USB Power

Outputs: AES, HDMI

Features: 3G HD-SDI, AES & Loudness Logging via USB or Ethernet

View Product X

NEW PAM2 AVB

NEW PAM2 AVB The PAM2 AVB  combines the power and capability of TSL Products’ industry leading PAM precision audio monitoring systems while specifically addressing the needs of an Audio-over-IP AVB facility infrastructure.

  • AES-icon
  • Analogue-icon
  • Auto-Sensing-HD-SDI-icon
  • Down-Conversion-icon
  • Video-Display-icon
  • HD-1080p-icon
  • Active-Speaker-System-icon
  • Audio-Delay-icon
  • Assign-Matrix-icon
  • Loudness-icon

NEW PAM2 AVB Features

Display: Dual OLED, Video Monitoring, 16 x Meter Type Bargraph, Data, Metadata and Loudness

Inputs: Dual Ethernet AVB, 2 x HD/SDI, 4 x AES, 2 x Analogue (Pair)

Outputs: Line Level (fixed/variable) , AES (fixed/variable), Reclocked HD/SDI, Composite Video, Downconverted Video, Headphone, Integral Loudspeakers

Features: User Configurable, Discreet Multichannel Audio Downmix, Loudness, Assign Matrix, Audio Delay, 3G capable

View Product X

PAM1 AVB

PAM1 AVB PAM1 AVB combines the power and capability of TSL Products’ industry leading PAM precision audio monitoring systems while specifically addressing the needs of an Audio-over-IP AVB facility infrastructure. The pioneer of the PAM AVB range, the PAM1 AVB is the broadcast industry’s first AVB monitoring solution.

  • AES-icon
  • Analogue-icon
  • Auto-Sensing-HD-SDI-icon
  • Down-Conversion-icon
  • Video-Display-icon
  • HD-1080p-icon
  • Active-Speaker-System-icon
  • Audio-Delay-icon
  • Assign-Matrix-icon
  • Loudness-icon

PAM1 AVB Features

Display: Dual LCD, Video Monitoring, 16 x Meter Type Bargraph, Data, Metadata and Loudness

Inputs: Dual Ethernet AVB, 2 x HD/SDI, 4 x AES, 2 x Analogue (Pair)

Outputs: Line Level (fixed/variable) , AES (fixed/variable), Reclocked HD/SDI, Composite Video, Downconverted Video, Headphone, Integral Loudspeakers

Features: User Configurable, Discreet Multichannel Audio Downmix, Loudness, Assign Matrix, Audio Delay, 3G capable

View Product X

SAM1 MADI

SAM1 MADI The Award winning SAM1 MADI brings MADI I/O to the agile and intuitive SAM range of Studio Audio Monitoring units, offering seamless operation in settings ranging from multi-language and surround sound/stereo production to live sports and event broadcasting. It’s ideal for both fixed and mobile broadcast facilities, as…

  • AES-icon
  • Analogue-icon
  • Auto-Sensing-HD-SDI-icon
  • HD-1080p-icon
  • Active-Speaker-System-icon
  • Ethernet-icon
  • Mixer-icon

SAM1 MADI Features

16 channel bargraph display of selected HD-SDI with two additional auxiliary bargraphs to mix analogue or AES inputs.

TSL dashboard control system compatible (future capability)

Menu selection of auxiliary channels 1 and 2 from analogue, AES and MADI inputs

A Dolby encoded source is muted when selected

View Product X

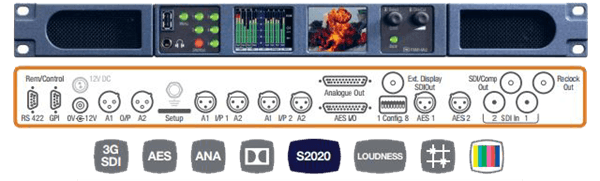

PAM1 MK2

PAM1 MK2 The PAM1 MK2 is an evolutionary step up from the original PAM1-3G8, offering an improved feature set and user interface, upgraded integrated speaker system, larger screens and a full set of functions carried over from the flagship PAM2 MK2 Precision Audio Monitor.

  • dolby-decoding-icon
  • AES-icon
  • Analogue-icon
  • Auto-Sensing-HD-SDI-icon
  • Down-Conversion-icon
  • Video-Display-icon
  • HD-1080p-icon
  • Active-Speaker-System-icon
  • Audio-Delay-icon
  • Assign-Matrix-icon
  • Loudness-icon

PAM1 MK2 Features

Display: Dual OLED, Video Monitoring, 16 x Meter Type Bargraph, Data, Metadata and Loudness

Inputs: 2 x HD/SDI, 8 x AES, 6 x Analogue (Pair)

Outputs: Line Level (fixed/variable) , AES (fixed/variable), Reclocked HD/SDI, Composite Video, Downconverted Video, Headphone, Integral Loudspeakers

Features: Dolby E/AC3 /DD+, User Configurable, Discrete Multichannel Audio Downmix, Loudness, Assign Matrix, Audio Delay, 3G capable

View Product X

PAM2 MK2 Dolby

PAM2 MK2 Dolby NEW Precision Audio monitoring unit, the natural evolution of the revolutionary PAM2-3G16 with external SDI monitor output and many other enhancements.

  • dolby-decoding-icon
  • AES-icon
  • Analogue-icon
  • Auto-Sensing-HD-SDI-icon
  • Down-Conversion-icon
  • Video-Display-icon
  • HD-1080p-icon
  • Active-Speaker-System-icon
  • Audio-Delay-icon
  • Assign-Matrix-icon
  • Loudness-icon
  • Ethernet-icon
  • Alarms-icon
  • Logging-icon

PAM2 MK2 Dolby Features

Display: Dual OLED, Video Monitoring, 16 x Meter Type Bargraph, Data, Metadata and Loudness

Inputs: 2 x HD/SDI, 8 x AES, 6 x Analogue (Pair)

Outputs: Line Level (fixed/variable) , AES (fixed/variable), Reclocked HD/SDI, Composite Video, Downconverted Video, Headphone, Integral Loudspeakers

Features: Dolby E/AC3 /DD+, User Configurable, Discrete Multichannel Audio Downmix, Loudness, Assign Matrix, Audio Delay, Ethernet, Logging (Future), Alarm Reporting (Future), 3G capable

View Product X

SAM1-3GM

Providing broadcasters and content producers with an agile and intuitive operating system, the SAM1-3GM (Studio Audio Monitoring unit) offers seamless operation in settings ranging from multi-language and surround sound/stereo production to live sports and event broadcasting.

  • AES-icon
  • Analogue-icon
  • Auto-Sensing-HD-SDI-icon
  • HD-1080p-icon
  • Active-Speaker-System-icon
  • Ethernet-icon
  • Mixer-icon

SAM1-3GM Features

20 channel bargraph display of selected HD-SDI, analogue or AES inputs with free assignment of any source to any channel.

TSL dashboard control system compatible (future capability)

Menu selection of auxiliary channels 1 and 2 from analogue and AES inputs

A Dolby encoded source is muted when selected

View Product X

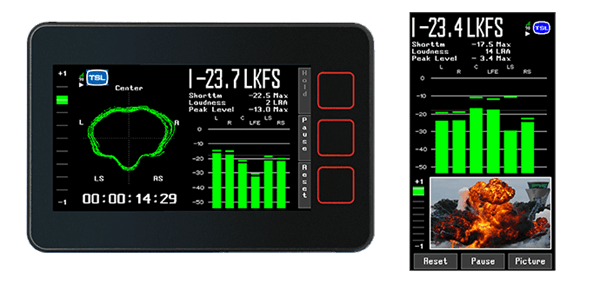

PAM PiCo Five

PAM PiCo Five Master 5.1 Surround Meter, 16 channel bargraph display, 3G HD-SDI (auto-sensing with loop through), 16 channel audio de-embedder, 3 AES Inputs (6 audio channels) + 1 Analogue Pair and USB power (PSU and universal mounting bracket supplied). Featuring Video Preview, Landscape mode, FFT spectrum analyser, SMPTE Timecode,…

  • AES-icon
  • Analogue-icon
  • Auto-Sensing-HD-SDI-icon
  • HD-1080p-icon
  • Assign-Matrix-icon
  • Loudness-icon
  • Logging-icon

PAM PiCo Five Features

Display: 16 Bargraph Display

Inputs: HD-SDI embedded, AES and Analog + USB Power

Features: 3G HD-SDI, AES & Loudness Logging

View Product X

PAM PiCo Two

PAM PiCo Two Master 5.1 Surround Meter, 8 channel bargraph display, 3 x AES Inputs (6 audio channels) + 1 Analogue Pair and USB power (PSU and universal mounting bracket supplied) Featuring Landscape mode, FFT spectrum analyser, SMPTE Timecode, Screen Grabber and Loudness Logging.

  • AES-icon
  • Analogue-icon
  • Assign-Matrix-icon
  • Loudness-icon
  • Logging-icon

PAM PiCo Two Features

Display: 8 Bargraph Display

Inputs: AES (3) and Analog (1) + USB Power

Features: Compact Universal Audio Metering  with Loudness Logging (as an option)

View Product X

NEW PAM PiCo Touch Media

NEW PAM PiCo Touch Media All you need for fully integrated Audio and Video Monitoring. All the loudness and logging capabilities of the PAM PiCo touchFeaturing the new Waveform monitoring option and 3 operational mode display, allowing you the flexibility to view Audio, Video or a combined view on your easy…

  • AES-icon
  • Analogue-icon
  • Auto-Sensing-HD-SDI-icon
  • HD-1080p-icon
  • Assign-Matrix-icon
  • Loudness-icon
  • Logging-icon
  • Ethernet-icon
  • Video-Display-icon
  • Touchscreen-icon

NEW PAM PiCo Touch Media Features

Display: 16 Multi-Touch 7″  Audio, Loudness and Waveform  Display

Inputs: HD-SDI embedded, AES and Analog + USB Power

Outputs: AES, HDMI

Features: 3G HD-SDI, AES & Loudness Logging via USB or Ethernet

View Product X

AMU1-3G Non Dolby

AMU1-3G Non Dolby Audio Monitoring Unit. 1RU, 2 x HD/SDI(1080p 60, 59.94, & 50Hz) 2 x stereo analogue inputs, 4 x AES inputs, dual 26 segment bargraphs, high quality internal stereo loudspeakers, external PSU

  • Auto-Sensing-HD-SDI-icon
  • AES-icon
  • Analogue-icon
  • HD-1080p-icon
  • Down-Conversion-icon
  • Active-Speaker-System-icon

AMU1-3G Non Dolby Features

Display: 2 x Meter Type Bargraph

Inputs: 2 x HD/SDI, 4 x AES, 2  x Analogue (Pair)

Outputs: Line Level fixed/variable F+V, AES fixed/variable F, Reclocked HD/SDI, Composite Video,Down Converted Video, Headphone, Integral Loud-Speakers

Features:  3G

View Product X

AMU1-CHD+

AMU1-CHD+ Audio monitoring unit, 1RU, 2 x HD/SDI, 2 x stereo analogue, 4 x AES inputs, dual 26 segment bargraphs, high quality internal stereo loudspeakers, external PSU

  • AES-icon
  • Analogue-icon
  • Auto-Sensing-HD-SDI-icon
  • Down-Conversion-icon
  • Active-Speaker-System-icon

AMU1-CHD+ Features

Display: 2 x Meter Type Bargraph

Inputs: 2 x HD/SDI, 4 x AES, 2  x Analogue (Pair)

Outputs: Line Level fixed/variable F+V, AES fixed/variable F, Reclocked HD/SDI, Composite Video,Down Converted Video, Headphone, Integral Loud-Speakers

View Product X

PAM PiCo One

PAM PiCo One Master Stereo Meter, 4 channel bargraph display, 2 x AES Inputs (4 audio channels) + 1 Analogue Pair and USB power (PSU and universal mounting bracket supplied). Featuring Landscape mode, FFT spectrum analyser, SMPTE Timecode, Screen Grabber and Loudness Logging.

  • AES-icon
  • Analogue-icon
  • Assign-Matrix-icon
  • Loudness-icon
  • Logging-icon

PAM PiCo One Features

Display: 4 Bargraph Display

Inputs: AES (2) and Analog (1) + USB Power

Features: Compact Universal Audio Metering  with Loudness Logging (as an option)

View Product X

TouchMix (AVM-T-MIX)

TouchMix (AVM-T-MIX) The Touchmix (AVM-T-Mix) is a Touchscreen 48 channel, 2RU, 1 HD/SDI input, rackmount audio mixer/monitor with master volume control, dual function channel gain/balance encoder, headphone socket, USB port, Ethernet, Home Preset save/recall switch and loudspeakers.

  • AES-icon
  • Analogue-icon
  • Auto-Sensing-HD-SDI-icon
  • HD-1080p-icon
  • Active-Speaker-System-icon
  • Ethernet-icon
  • Mixer-icon
  • Touchscreen-icon

TouchMix (AVM-T-MIX) Features

Display: 22:9 Touchscreen with unique ‘touch to listen’ functionality

Inputs: HD-SDI De-embedder, 8 x AES, 8 x Analog Stereo Inputs

Outputs: Fixed/Variable Analog Outputs, Fixed or Variable AES stereo outputs

Features:  22:9 aspect ratio touchscreen, USB port, loudspeakers, dual mixer/monitor systems, solo function, Ethernet connectivity for network system configuration and management (future), colour coded channel format display for instant recognition, auto ‘one-touch’ downmix for discrete 5.1 audio

View Product X

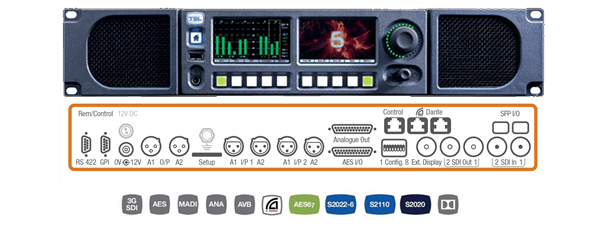

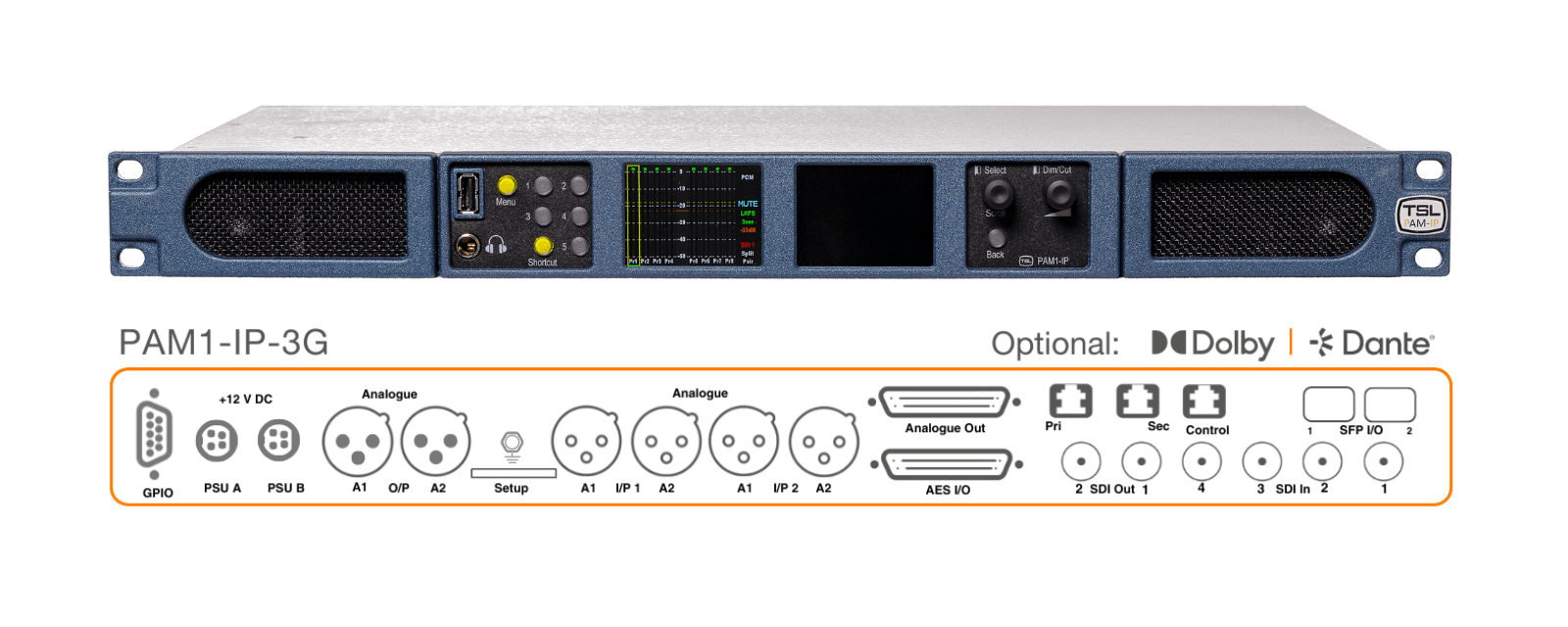

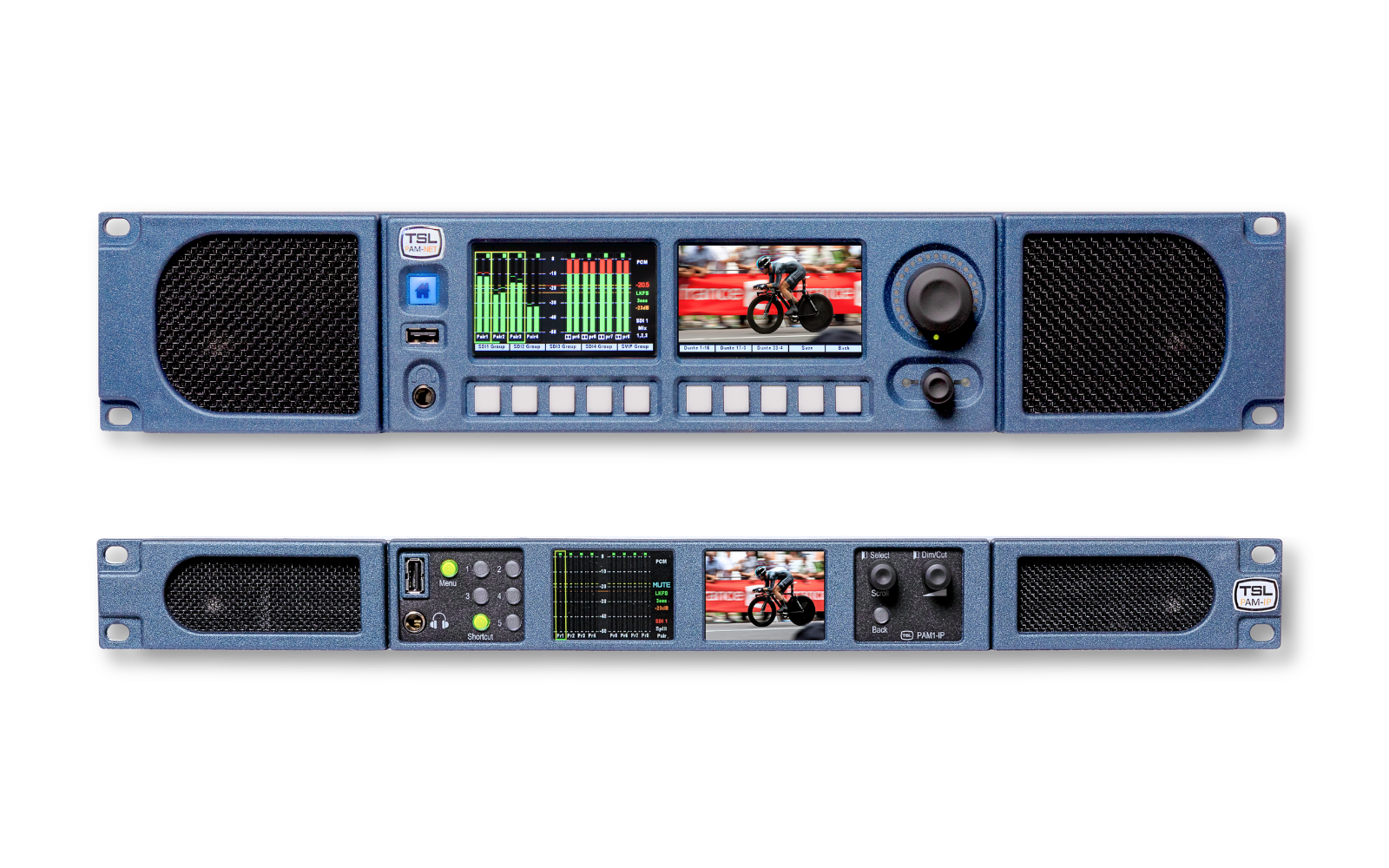

PAM-IP

The PAM-IP range builds on our flagship PAM audio monitors and is designed to smooth the transition to an IP based workflow. The IP variant of the PAM adds, over and above the existing functionality, support for Video over IP (S2022-6), Audio over IP (Dante/AES67) and UHD (4K over 12G-SDI or Quad3G-SDI)….

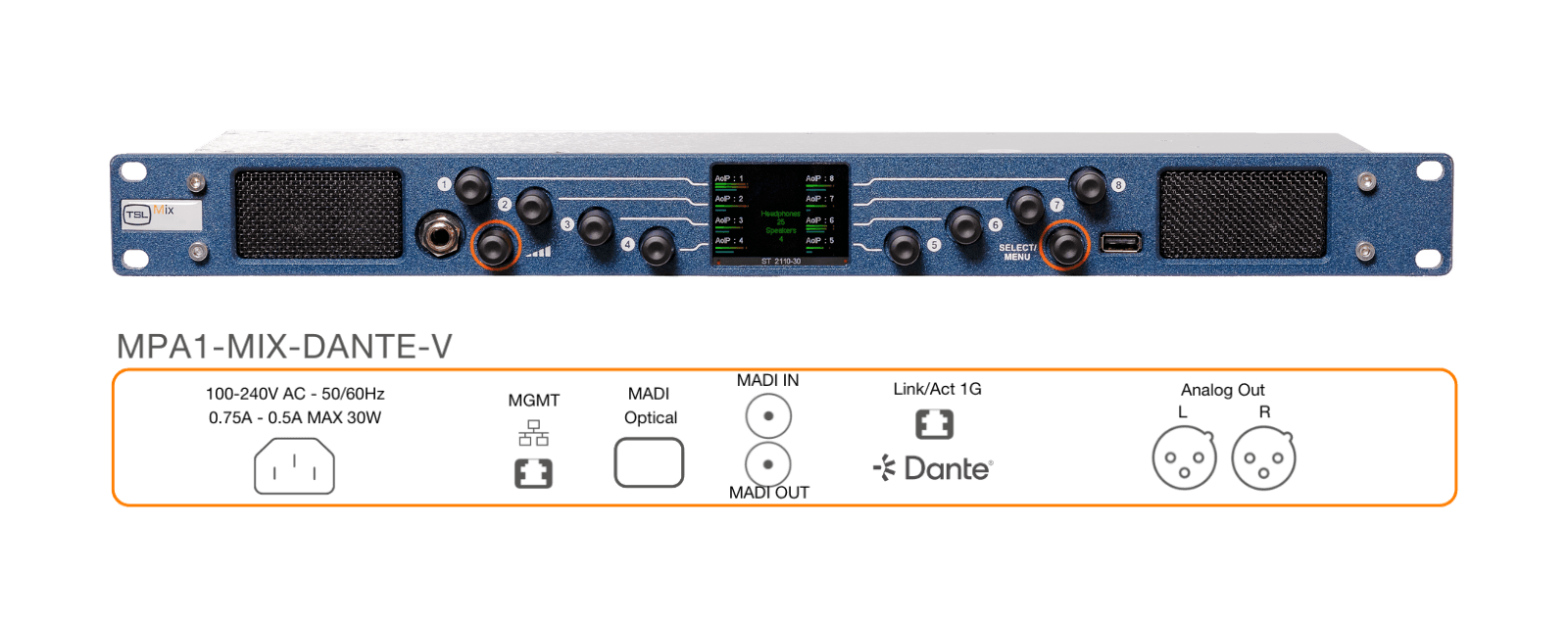

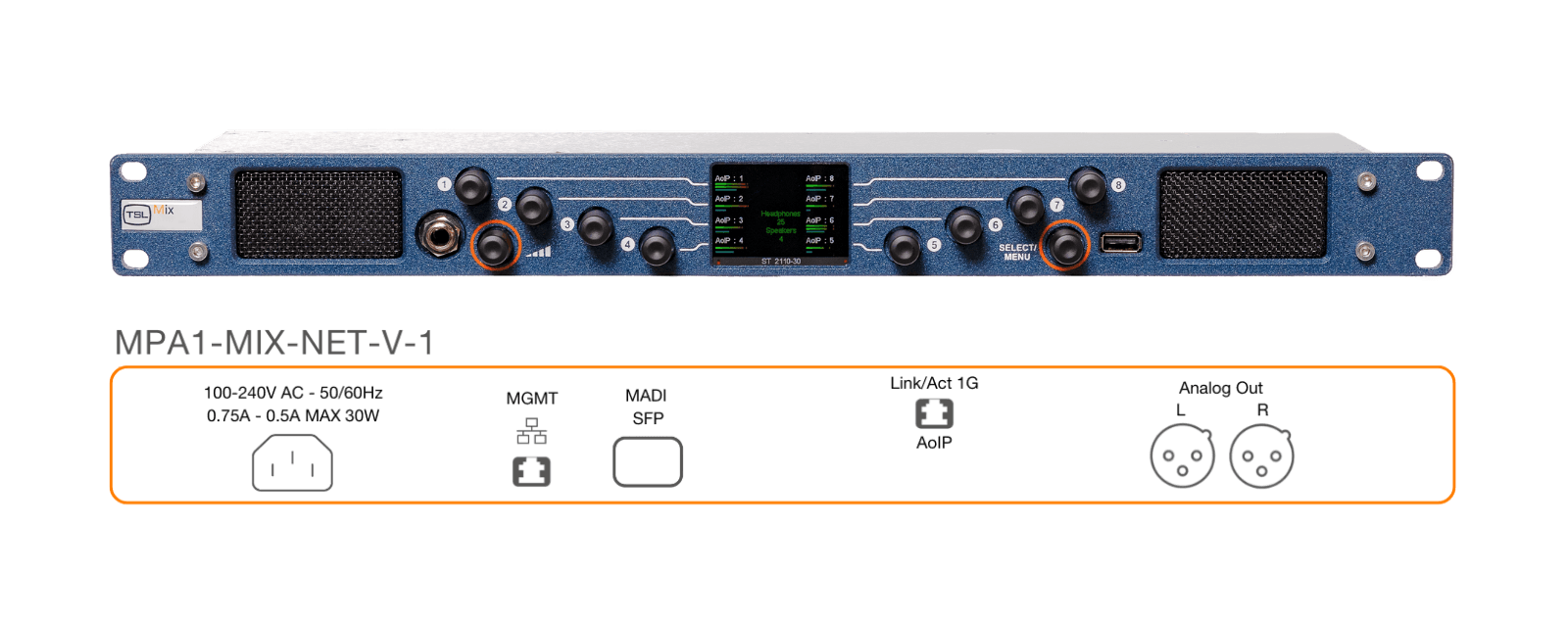

NEW MPA1- Mix/Solo Dante

NEW MPA1- Mix/Solo Dante Offers solutions for established Audio over IP

AMU1-3G

AMU1-3G Audio Monitoring Unit. 1RU, 2 x HD/SDI(1080p 60, 59.94, & 50Hz), Dolby D/E decoding, 2 x stereo analogue inputs, 4 x AES inputs, dual 26 segment bargraphs, high quality internal stereo loudspeakers, external PSU

  • dolby-decoding-icon
  • AES-icon
  • Analogue-icon
  • Auto-Sensing-HD-SDI-icon
  • Down-Conversion-icon
  • HD-1080p-icon
  • Active-Speaker-System-icon

AMU1-3G Features

Display: 2 x Meter Type Bargraph

Inputs: 2 x HD/SDI, 4 x AES, 2  x Analogue (Pair)

Outputs: Line Level fixed/variable F+V, AES fixed/variable F, Reclocked HD/SDI, Composite Video,Down Converted Video, Headphone, Integral Loud-Speakers

Features: Dolby D, D+ & E Decoding, 3G

View Product X

MPA1- Mix/Solo – 3G

MPA1- Mix/Solo – 3G With 2 SDI inputs, 1 SDI outputs, 1 AES inputs, 1 Analogue inputs & HDMI output.

MPA1- Mix/Solo – 8

MPA1- Mix/Solo – 8 With 8 analogue and 8 digital inputs

NEW MPA1- Mix/Solo HYDRA2

NEW MPA1- Mix/Solo HYDRA2 Offers solutions for established Audio over I/P

NEW MPA1- Mix/Solo RAVENNA

NEW MPA1- Mix/Solo RAVENNA Offers solutions for established Audio over I/P

NEW MPA1- Mix/Solo MADI

NEW MPA1- Mix/Solo MADI Supports up to 64 channels of audio via MADI as well as 8 Analogue channels via a D type connector

AMU2-2BHD+

AMU2-2BHD+ Audio monitoring unit, 2RU, 2 x HD/SDI, 2 x stereo analogue, 4 x AES inputs, 2 x dual 106 segment bargraphs, internal PSU

  • AES-icon
  • Analogue-icon
  • Auto-Sensing-HD-SDI-icon

DC1-4 HP

DC1-4 HP The DC1-4 HP is a four channel stereo dim cut unit with a front mounted headphone socket

DC1-1 HP

DC1-1 HP The DC1-1 HP is a single channel stereo input dim cut unit with a front mounted headphone socket

AVMU2-3G

AVMU2-3G The AVMU2-3G is a 2RU 3G Audio Video monitoring unit, with 4.5″ Widescreen Video Display and Dual 53 Segment Stereo Bar graphs

  • AES-icon
  • Analogue-icon
  • Auto-Sensing-HD-SDI-icon
  • Down-Conversion-icon
  • Video-Display-icon
  • HD-1080p-icon
  • Active-Speaker-System-icon

AVMU2-3G Features

Display: Video Monitoring, 4 x Meter Type Bargraph

Inputs: 2 x HD/SDI, 2 x AES, 2 x Analogue (Pair)

Outputs: Line Level fixed/variable, AES fixed/variable, Reclocked HD/SDI, Composite Video, Downconverted Video, Headphone

Features: 3G

View Product X

AMU1-BHD+

AMU1-BHD+ (Limited Availability! Please contact your local sales representative) Audio monitoring unit, 1RU, 2 x HD/SDI, 2 x stereo analogue, 4 x AES inputs, dual 106 segment bargraphs, external PSU

  • AES-icon
  • Analogue-icon
  • Auto-Sensing-HD-SDI-icon
  • Down-Conversion-icon
  • Loudness-icon

AMU1-BHD+ Features

Display: 2 x Meter Type Bargraph

Inputs: 2 x HD/SDI, 2 x HD/SDI, 4 x AES, 2 x Analogue (Pair)

Outputs: Line Level fixed/variable F+V, AES Fixed/variable F, Reclocked HD/SDI, Composite Video, Down Converted Video, Headphone, Power Amplifier

Features:  Loudness

View Product X

AMU2-2MHD+ PPM

AMU2-2MHD+ PPM The AMU2-2MHD+ PPM is a 2RU audio monitoring unit with 2 x HD/SDI, 2 x stereo analogue, 4 x AES inputs, dual PPM Sifam meters, internal PSU. Featuring PPM and VU moving coil options.

  • AES-icon
  • Analogue-icon
  • Auto-Sensing-HD-SDI-icon
  • Down-Conversion-icon

AMU2-2MHD+ PPM Features

Display: Dual PPM Sifam Meters

Inputs: 2 x Analogue (Pair), 4x AES (Pair) and dual HD-SDI

Outputs: Analogue Variable Stereo, Fixed AES (XLR & D-Sub), 15-watt Loudspeaker Amplifier & Stereo Headphone.

Features: Moving Coil Meters

View Product X

AMUT-2MA VU

AMUT-2MA VU (Limited Availability! Please contact your local sales representative) Audio monitoring unit, 3RU half rack width, 4 x stereo analogue inputs, dual PPM Sifam meter displays, internal PSU

  • Analogue-icon

AMUT-2MA VU Features

Display: Dual PPM Sifam Meter Displays

Inputs: 4  x Analogue (Pair)

Outputs: Line Level fixed/variable, Headphone, Power Amplifier

View Product X

MPA1-BD

MPA1-BD MP Series Audio monitoring unit, 1RU, 2 x stereo analogue, 2 x AES inputs, internal stereo loudspeakers, dual 26 segment bargraphs, external PSU

  • AES-icon
  • Analogue-icon
  • Active-Speaker-System-icon

MPA1-BD Features

Display: 2 x Meter Type Bargraph

Inputs: 2 x AES, 2 Analogue (Pair)

Outputs: Headphone, Integral Loud-Speakers

View Product X

MPA1-BA

MPA1-BA MP Series Audio monitoring unit, 1RU, 2 x stereo analogue inputs, internal stereo loudspeakers, dual 26 segment bargraphs, external PSU

  • Analogue-icon
  • Active-Speaker-System-icon

MPA1-BA Features

Display: 2 x Meter Type Bargraph

Inputs: 2 Analogue (Pair)

Outputs: Headphone, Integral Loud-Speakers

View Product X

MPA1-ASC-8

MPA1-ASC-8 (Limited Availability! Contact your sales representative) The  MPA1-ASC-8 from our MP Series Audio monitoring range is a 1RU, 8 x stereo analogue inputs, uprated power amplifier / speakers, balance control, fixed/variable line level outputs, external PSU

  • Analogue-icon
  • Active-Speaker-System-icon

MPA1-ASC-8 Features

Display: 2 x Meter Type Bargraph

Inputs: 8 HD/SDI

Outputs: Line Level fixed/variable F+V, Headphone, Integral Loud-Speakers

View Product X

MPA1-ASB-8

MPA1-ASB-8 MP Series Audio monitoring unit, 1RU, 8 x stereo analogue inputs, uprated power amplifier / speakers, balance control, fixed/variable line level outputs, 2 x 12 segment bargraphs, external PSU

  • Analogue-icon
  • Active-Speaker-System-icon

MPA1-ASB-8 Features

Display: 2 x Meter Type Bargraph

Inputs: 2 x Analogue (Pair)

Outputs: Line Level fixed/variable F+V, Headphone, Integral Loud-speakers

View Product X

BBG-1

BBG-1 (Limited Availability! Contact your sales representative) The first in the BBG Series of bargraph audio metering. It features 1 x stereo analogue, 1 x AES inputs, 106 segment bargraph and external PSU

  • AES-icon
  • Analogue-icon
  • Loudness-icon

BBG-1 Features

Display: 2 x Meter Type Bargraph

Inputs: 1 x AES, 1 Analogue (Pair)

Features: Loudness

View Product X

BBG-1-DUAL

BBG-1-DUAL (Limited Availability! Contact your sales representative) The BBG-1-DUAL is a 1RU 4 Channel High-Resolution Bargraph Display

  • AES-icon
  • Analogue-icon
  • Loudness-icon

BBG-1-DUAL Features

Display: 2 x Meter Type Bargraph

Inputs: 2 x AES, 2 Analogue (Pair)

View Product X

BBG-D1

BBG-D1 The BBG D1 is a 10.5″ desk panel accessory for the BBG device

BBG-P1

BBG-P1 A 19″ rack panel accessory for the BBG bargraph metering device (single)

BBG Stand

BBG Stand A 6.5″ mounting stand unit for the BBG bargraph metering device

AMU2-2MAS-PPM

AMU2-2MAS-PPM (Limited Availability! Please contact your local sales representative) The NEW AMU2-2MAS-PPM 2RU Audio monitoring unit, has 6 x stereo analogue inputs, dual PPM Sifam meter displays, internal stereo loudspeakers, internal PSU. Also features PPM and VU moving coil options.

  • Analogue-icon
  • Active-Speaker-System-icon

AMU2-2MAS-PPM Features

Display: Dual PPM Sifam meter displays

Inputs: 6 x Analogue (2 on XLR & 4 on Dsub)

Outputs: Internal Stereo Loudspeakers

View Product X

BBG-P2

BBG-P2 A 19″ rack panel mounting accessory for BBG bargraph metering device (dual)

MPA1-3G

MPA1-3G From the MP Series of Audio monitoring units. In 1RU with 1 x auto sensing, 3G HD-SDI input, de-embedder with selection of 16 audio channels, high power amplifier/full range speakers, balance control, fixed/variable line level outputs and external PSU

  • Auto-Sensing-HD-SDI-icon
  • HD-1080p-icon
  • Active-Speaker-System-icon

MPA1-3G Features

Display: 2 x Meter Type Bargraph

Inputs: 1 HD/SDI

Outputs: Line Level fixed/variable F+V, Reclocked HD/SDI (Loop), Headphone, Integral Loudspeakers

Features:  3G

View Product X
ERROR: 8 - CURL error: Could not resolve: tsl.co.uk.infusionsoft.com (Domain name not found)
